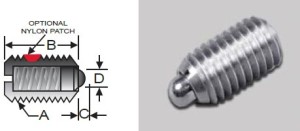

Standard Spring Plunger – Brass & 316 Stainless Steel, Standard End Force

  • Brass & 316 Stainless Body
  • Brass & 316 Stainless Nose
  • Standard End Force
  • Add “P” to end of part number for optional nylon patch. Do not use the nylon patch if threading into soft material such as aluminum.
  • Add “PT” for nylon pellet.

Brass P/N 316 Stainless P/N Thread (A) Body Length (B) Nose Length (C) Nose Dia (D) Start End Force (lbs) End End Force (lbs)
SWB10-2AS SSW10-2AS-316 8-32 0.437 0.052 0.070 1.5 4.7
SWB10-22AS SSW10-22AS-316 8-32 0.500 0.094 0.070 0.5 4
SWB10-2S SSW10-2S-316 8-36 0.437 0.052 0.070 1.5 4.7
SWB10-3S SSW10-3S-316 10-32 0.468 0.065 0.093 1.7 6.2
SWB10-4S SSW10-4S-316 1/4-20 0.531 0.078 0.119 3 10.5
SWB10-5S SSW10-5S-316 5/16-18 0.562 0.084 0.135 3.7 15.5
SWB10-6S SSW10-6S-316 3/8-16 0.625 0.110 0.186 4.5 18.5
SWB10-8S SSW10-8S-316 1/2-13 0.750 0.151 0.248 5 28.5
SWB10-10S SSW10-10S-316 5/8-11 1.062 0.215 0.310 7 50.0
