Knurled Knob – Locking Nose With Nylon Patch

  • Locking, Hand-Retractable Knurled Handle Spring Plungers
  • Steel, Stainless Steel, and Brass
  • Nylon Patch
  • Also available with nylon pellet

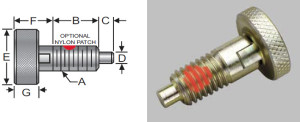

Steel P/N 303 Stainless P/N 316 Stainless P/N Brass P/N Thread (A) Thread Length (B) Nose Length (C) Nose Dia (D) Knob Dia (E) Knob Hub Length (F) Knurled Width (G) Start End Force (lbs) End End Force (lbs)
WKLS-0 SWKLS-0 SWKLS-0-316 BWKLS-0 10-32 0.40 0.09 0.104 3/8 1/4 3/16 0.5 3
WKLS-1 SWKLS-1 SWKLS-1-316 BWKLS-1 1/4-20 0.50 0.13 0.123 1/2 5/16 3/16 1 4
WKLS-2 SWKLS-2 SWKLS-2-316 BWKLS-2 5/16-18 0.63 0.19 0.154 5/8 3/8 1/4 1 5
WKLS-3 SWKLS-3 SWKLS-3-316 BWKLS-3 3/8-16 0.75 0.22 0.185 3/4 1/2 5/16 1 8
WKLS-4 SWKLS-4 SWKLS-4-316 BWKLS-4 1/2-13 0.88 0.25 0.248 1 5/8 3/8 1 10
WKLS-5 SWKLS-5 SWKLS-5-316 BWKLS-5 5/8-11 1.00 0.32 0.312 1-1/4 3/4 7/16 1.5 12
WKLS-6 SWKLS-6 SWKLS-6-316 BWKLS-6 3/4-10 1.20 0.45 0.375 1-1/2 13/16 1/2 1.5 16
