Knurled Knob – Non Locking Nose Without Nylon Patch

  • Metric Non-Locking, Hand-Retractable Knurled Handle Spring Plungers
  • Steel, and Stainless Steel

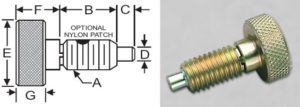

Steel P/N 303 Stainless P/N Thread (A) Thread Length (B) Nose Length (C) Nose Dia (D) Knob Dia (E) Knob Hub Length (F) Knurled Width (G) Start End Force (lbs) End End Force (lbs)
10-32 0.40 0.09 0.052 3/8 1/4 3/16 0.5 3
1/4-20 0.50 0.13 0.124 1/2 5/16 3/16 1 4
5/16-18 0.63 0.19 0.155 5/8 3/8 1/4 1 6
