Acme Thread Teardrop PolyMounts™, Stud Style, 4″ dia Teardrop Base, Inch

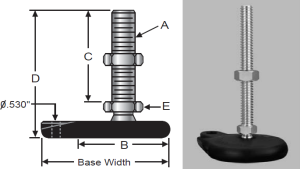

| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Base Width | Thread Length (C) | Total Height (D) | Hex Size (E) | Max Load (lbs) |
|---|---|---|---|---|---|---|---|---|
| TNYLB44-AC1 | TSNYLB44-AC1 | 1/2-10 | 4 | 5 7/16 | 4 | 5 5/16 | 3/4 | 6000 |
| TNYLC44-AC1 | TSNYLC44-AC1 | 5/8-8 | 4 | 5 7/16 | 4 | 5 5/16 | 7/8 | 7500 |
| TNYLC46-AC1 | TSNYLC46-AC1 | 5/8-8 | 4 | 5 7/16 | 6 | 7 5/16 | 7/8 | 7500 |
| TNYLC48-AC1 | TSNYLC48-AC1 | 5/8-8 | 4 | 5 7/16 | 8 | 9 5/16 | 7/8 | 7500 |
| TNYLD44-AC1 | TSNYLD44-AC1 | 3/4-6 | 4 | 5 7/16 | 4 | 5 5/16 | 1 1/16 | 7500 |
| TNYLD46-AC1 | TSNYLD46-AC1 | 3/4-6 | 4 | 5 7/16 | 6 | 7 5/16 | 1 1/16 | 7500 |
| TNYLD48-AC1 | TSNYLD48-AC1 | 3/4-6 | 4 | 5 7/16 | 8 | 9 5/16 | 1 1/16 | 7500 |
| TNYLE44-AC1 | TSNYLE44-AC1 | 1-5 | 4 | 5 7/16 | 4 | 5 5/16 | 1 3/8 | 7500 |
| TNYLE46-AC1 | TSNYLE46-AC1 | 1-5 | 4 | 5 7/16 | 6 | 7 5/16 | 1 3/8 | 7500 |
| TNYLE48-AC1 | TSNYLE48-AC1 | 1-5 | 4 | 5 7/16 | 8 | 9 5/16 | 1 3/8 | 7500 |
